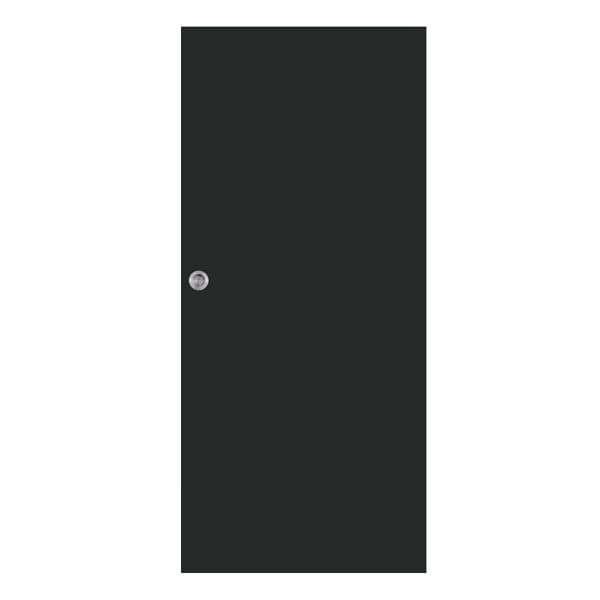

DARK GREY GLASS DOOR
Dark grey glass door leaf. The material is 8mm thick tempered safety glass.
0,00 €
Total Price:
0,00 €
Structure
The door is made of 8 mm thick tempered safety glass, compliant with the RakMK F2 2001 regulations. The thickness of the D9 AIKA door is 8 mm.
Frame elements compatible with separately sold door panels can be purchased here.
Door Width
AIKA doors come in standard widths of 410–1210 mm. Wider doors are available upon request.
Door Height
AIKA doors are available in heights of 2100 mm or 2300 mm. Taller door heights can be custom ordered.
Sound Insulation
LIUNE AIKA doors have a sound insulation rating of Rw 17 dB. Tests conducted by Sitowise Oy.
More information on the sound insulation of Liune doors is available here.
Door Surface

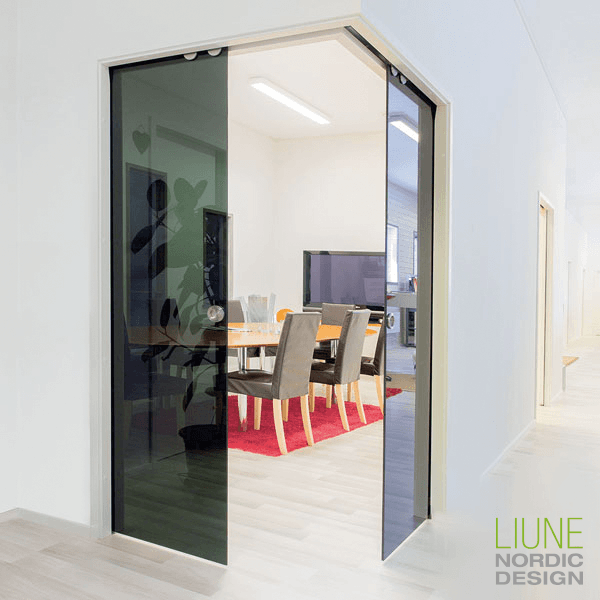

This glass door is tinted in a dark smoky gray color.
Fittings
Handles can be selected based on the requirements of the site. The roller sets, or bearing rollers, are suspended on the sliding track of the element, and the brackets are attached to the door.
Locks and Lock Mechanism
As an additional accessory, you can choose a lock for the door. Available lock options can be viewed in the dropdown menu.
Threshold
Liune doors have no threshold, ensuring barrier-free access.
Rollers and Sealing
The door can be ordered with rollers that allow it to slide in the track, as well as a white soft-seal strip to soften the sound of the door closing against the frame, available here.
Handing
The appearance of the doors is identical, allowing the handing to be freely chosen according to the site requirements.
Equipment
Hanging brackets are pre-installed on the door. The door fully retracts into the wall with an integrated handle, which is pre-attached. An external handle occupies approximately 100 mm of the free passage width. The door also comes with a pre-installed Liune locking and spring latch mechanism, which functions as a damper and safety mechanism when paired with the Liune element.
Warranty
We provide a two-year product warranty.
Have a great modeling experience with Liune
The GDL object library is a comprehensive and easy to use. A tool for designers and projects in the ArchiCAD environment. Using the web material of product information requires AcrobatReader.
Opening and processing CAD images requires a separate CAD program. If you use the ArchiCAD program, you can download the Liune Door object.
LIUNE CAD -drawings DWG
Autodesk AutoCAD.
Liune dynamic blocks library 2022.dwg (13.5MB)
User's guide Liune AutoCAD dynamic blocks.pdf
LIUNE DOOR PDF -library
LIUNE DOOR high door element 66mm and 95mm
LIUNE DOOR sauna frame 95mm 120mm 565 KB
LIUNE DOOR one leaf and double door frame 120mm 592 KB
LIUNE DOOR one leaf and double door frame 66mm 1 MB
LIUNE DOOR one leaf and double door frame 95mm 2 MB
Liune renovation elements 3 MB
Liune renovation elements without opposite frame 3 MB
Liune ArchiCAD-object 1/2023
User guide for GDL Liune library.pdf
LIUNE VXZ -files (Vertex)
Files are provided as it is and company holds no responsibility for the possible errors in programming, files or measurements direct or indirect. Validy of the information should be always checked.
LIUNE Revit RFA -files, Autodesk Revit ver. 2016
Liune D1 massive door 2 MBLiune D2 laminate door 2 MB
Liune D3 smooth white door 2 MB
Liune D4 white milled mirror door 2 MB
Liune D5 moisture resistant door 2 MB
Liune D6 oak veneer door 2 MB
Liune D7 light opening door 2 MB
Liune D8 panel door 2 MB
Liune D9 glass door opal clear dark grey 2 MB
Liune D10 mirror door 2 MB
Liune D11 sauna glass sauna wood door 2 MB
Liune D13 veneer door 2 MB
Liune D14 print glass 2 MB
Liune D15 classic sliding door by liune 916 KB
Liune D16 design door 2 MB
Revit user guide
Door textures for Revit
Preview:
Load and save the textures from link below. You will need the pictures in Revit to replace the white door texture.
Liune door textures 2,59 MB
Liune Door BIM object for Autodesk Revit rfa 2012
Liune D1 massive door 2 MB
Liune D2 laminate door 2 MB
Liune D3 smooth white door 2 MB
Liune D4 white milled mirror door 3 MB
Liune D5 moisture resistant door 2 MB
Liune D6 oak veneer door 2 MB
Liune D7 light opening door 2 MB
Liune D8 panel door 2 MB
Liune D9 glass door opal clear dark grey 2 MB
Liune D10 mirror door 2 MB
Liune D11 sauna glass sauna wood door 2 MB
Liune D13 veneer door 2 MB
Liune D14 print glass 2 MB
Liune D15 classic sliding door by liune 824 KB
Liune D16 design door 2 MB
10 Year Warranty for element
MATERIAL | TEMPERED SAFETY GLASS |
THICKNESS | 8 mm |
SURFACE | GLASS |
COLOUR | DARK GREY |
SOUND INSULATION | Rw 17 dB |
FEATURES | LOCKS AND HANDLES |
