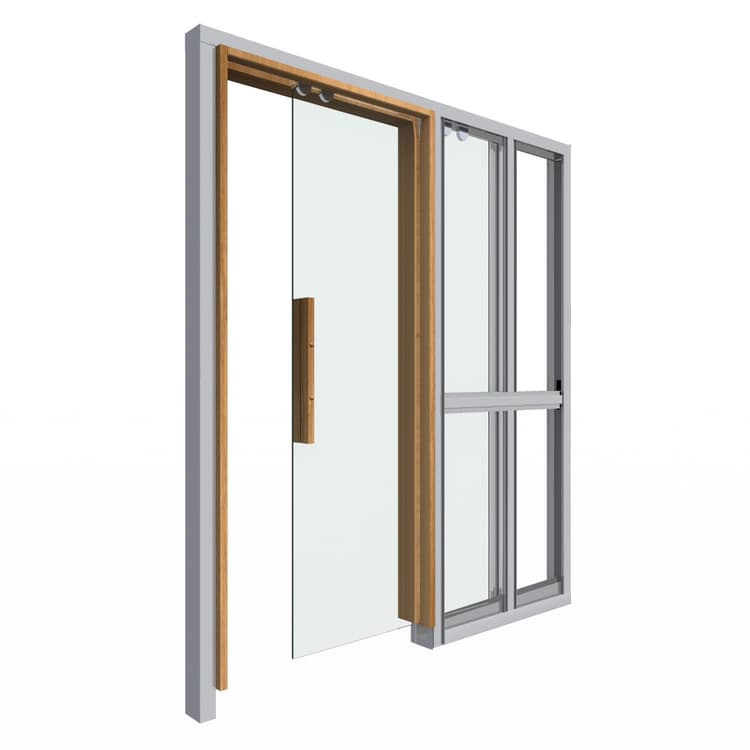

Heat | D11 Bright glass
Bright glass sauna door with wooden handle
0,00 €
Total Price:
0,00 €
Intended use
Liune HEAT has been carefully designed to give you a lot of additional space in sauna. For newer and renovation projects.
Structure
8 mm thick tempered safety glass, in accordance with RakMK F2 2001 regulations.
The element is structural steel and the structure is welded at the factory. The patented element is made out of CE marked steel profiles. The element of HEAT-door is specially designed and made to be suitable for wet areas and does not leave any humidity or moisture inside the structures.
Door width
610-1110 mm.
Door height
HEAT doors are 2100 mm high.
Depth of the wall
The wall depth is 121 mm when the frame is 95 mm and the depth is 146 mm when the frame is 120 mm.
Tubing
In 120mm element it is possible to install the water tubes for shower. More about the element and Liune for wet rooms here.
Door surface
This Heat-door has a bright glass. Other color choices for the sauna glass door are opal and dark grey.
Fitting
Sauna door Heat comes with a beautiful crafted wooden handle, the material is aspen. The external handle takes about 100 mm from the free passage. The door is delivered ready for installation, ie the handle is pre-attached.
Frame
The standard door frames for Liune Heat are made of heat treated aspen. The frame blugs are made of pine.
Threshold
There is no threshold in Liune, ie the passage is unobstructed.
Equipment
The suspension mechanisms are already attached to the element and the door. Only installation is done on site, as the products are already assembled at the factory. The external handle takes about 100 mm from the free passage. The delivery also includes screws for plasterboard and frames, roller shutters, wooden frame plugs and a door adjustment key.
Warranty
We grant (10) a ten-year warranty on the Liune Door prefabricated frame. This requires that the product installation and instructions have been followed and the products were for home use.
Handle the glass door carefully.
The glass door is tempered safety glass that, when installed inside the element keep an eye out from large loads and shocks parallel to the level of the glass. When installing a glass door, make sure that the edge of the glass does not touch a hard floor or wall surface. Glass must never be handled with impatience or carelessness. The edges are the most vulnurable points.
If the glass or the edge of the glass is hit sharply, it will break into small crumbs. If the edge of the glass is cracked the glass must not be used, as the risk of glass breakage is bound to happen during and after installation. According to the rules of the Finnish Flat Glass Association, the glass manufacturer or further processor is not responsible for glass breakages that occur during or after the glass is installed.
Storage of the glass in the transport rack until installation.
Delivery package
- Sliding door element ready for installation, with fixed aluminium and lower rails as well as space for the selected door leaf. The possibility for electric conduit is noticed in the element.
- Sliding door. The hanging mechanisms have been attached already.
- Frames, measured always on one plasterboard panel per installation side.
- Fastenings - The bearings and screws for frame fastening and attaching the plasterboard to the element.
- Installation guide for the element, which is installed during the frame stage; and for the door, which is usually installed after the surface works have been completed.
The delivery does not include any plasterboards or cover trims.
Measurements
Have a great modeling experience with Liune
The GDL object library is a comprehensive and easy to use. A tool for designers and projects in the ArchiCAD environment. Using the web material of product information requires AcrobatReader.
Opening and processing CAD images requires a separate CAD program. If you use the ArchiCAD program, you can download the Liune Door object.
LIUNE CAD -drawings DWG
Autodesk AutoCAD.
Liune dynamic blocks library 2022.dwg (13.5MB)
User's guide Liune AutoCAD dynamic blocks.pdf
LIUNE DOOR PDF -library
LIUNE DOOR high door element 66mm and 95mm
LIUNE DOOR sauna frame 95mm 120mm 565 KB
LIUNE DOOR one leaf and double door frame 120mm 592 KB
LIUNE DOOR one leaf and double door frame 66mm 1 MB
LIUNE DOOR one leaf and double door frame 95mm 2 MB
Liune renovation elements 3 MB
Liune renovation elements without opposite frame 3 MB
Liune ArchiCAD-object 1/2023
User guide for GDL Liune library.pdf
LIUNE VXZ -files (Vertex)
Files are provided as it is and company holds no responsibility for the possible errors in programming, files or measurements direct or indirect. Validy of the information should be always checked.
LIUNE Revit RFA -files, Autodesk Revit ver. 2016
Liune D1 massive door 2 MBLiune D2 laminate door 2 MB
Liune D3 smooth white door 2 MB
Liune D4 white milled mirror door 2 MB
Liune D5 moisture resistant door 2 MB
Liune D6 oak veneer door 2 MB
Liune D7 light opening door 2 MB
Liune D8 panel door 2 MB
Liune D9 glass door opal clear dark grey 2 MB
Liune D10 mirror door 2 MB
Liune D11 sauna glass sauna wood door 2 MB
Liune D13 veneer door 2 MB
Liune D14 print glass 2 MB
Liune D15 classic sliding door by liune 916 KB
Liune D16 design door 2 MB
Revit user guide
Door textures for Revit
Preview:
Load and save the textures from link below. You will need the pictures in Revit to replace the white door texture.
Liune door textures 2,59 MB
Liune Door BIM object for Autodesk Revit rfa 2012
Liune D1 massive door 2 MB
Liune D2 laminate door 2 MB
Liune D3 smooth white door 2 MB
Liune D4 white milled mirror door 3 MB
Liune D5 moisture resistant door 2 MB
Liune D6 oak veneer door 2 MB
Liune D7 light opening door 2 MB
Liune D8 panel door 2 MB
Liune D9 glass door opal clear dark grey 2 MB
Liune D10 mirror door 2 MB
Liune D11 sauna glass sauna wood door 2 MB
Liune D13 veneer door 2 MB
Liune D14 print glass 2 MB
Liune D15 classic sliding door by liune 824 KB
Liune D16 design door 2 MB
10 Year Warranty for element

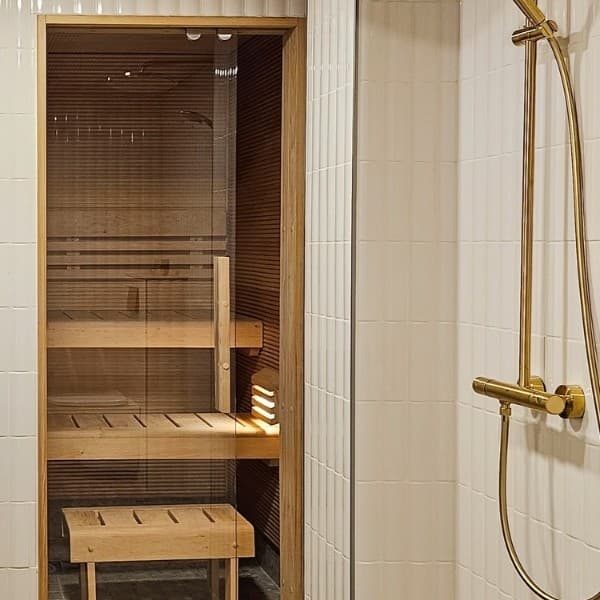

Create your own unique sauna with this bright glass Liune door. Modern and space-saving solution for bathroom facilities with sauna. Sauna door Heat comes with a beautifully crafted wooden handle.
Delivery package
- Sliding door element ready for installation, with fixed aluminum and lower rails as well as space for the selected door leaf. The possibility for the electric conduit is noticed in the element.
- Sliding door. The hanging mechanisms have been attached already.
- Frames, measured always on one plasterboard panel per installation side.
- Fastenings - The bearings and screws for frame fastening and attaching the plasterboard to the element.
- Installation guide for the element, which is installed during the frame stage; and for the door, which is usually installed after the surface works have been completed.
The delivery does not include any plasterboards or cover trims.
