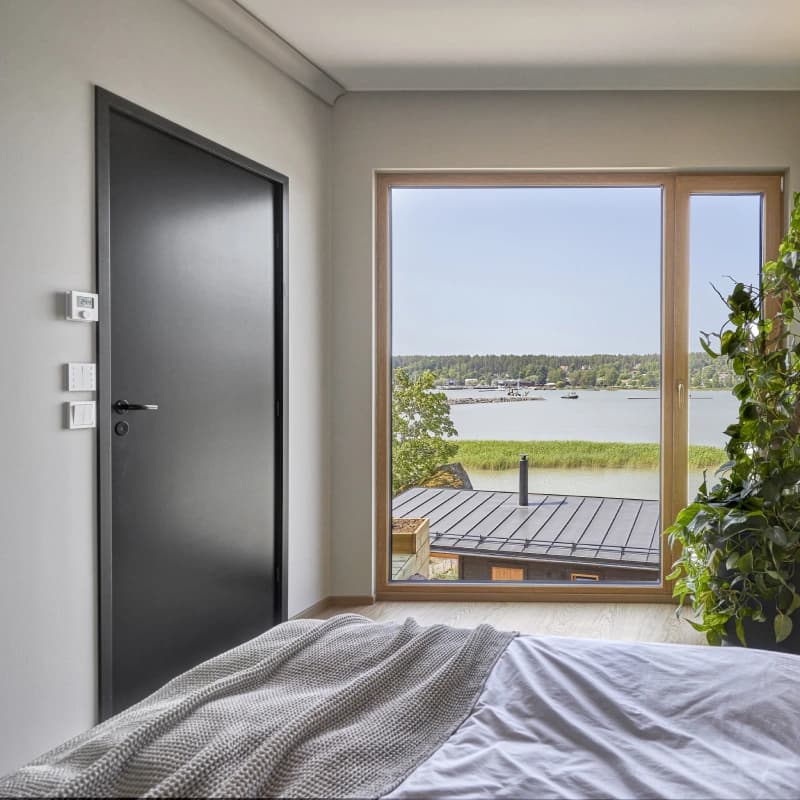

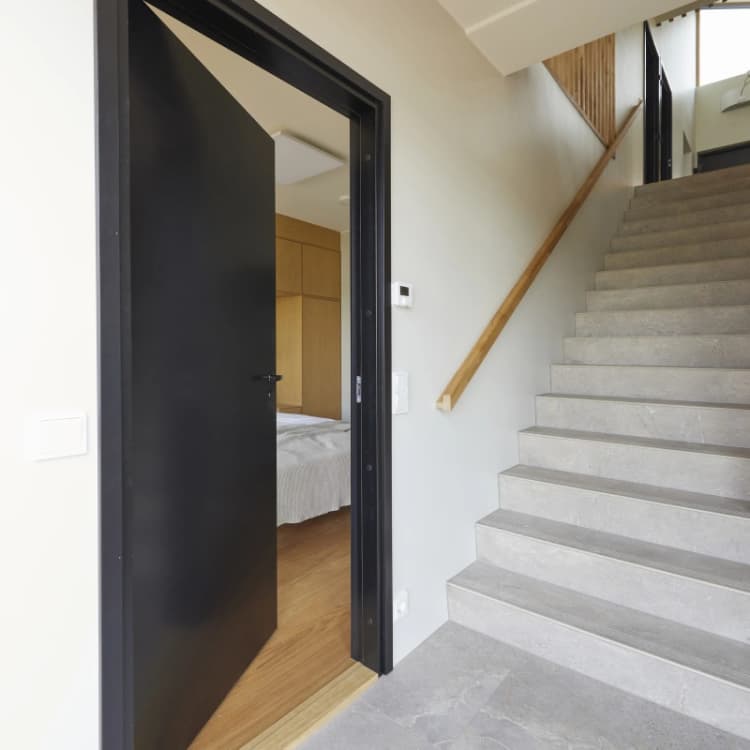

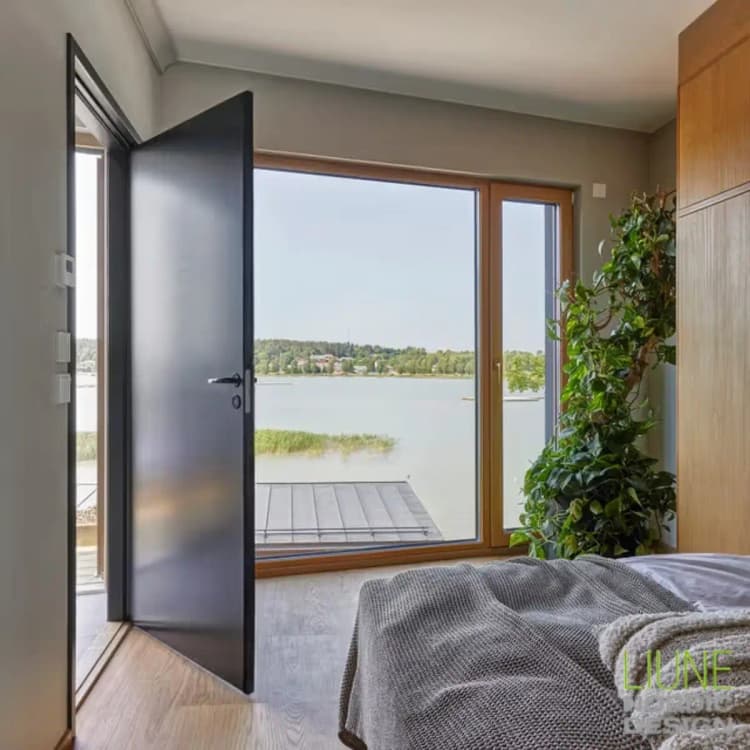

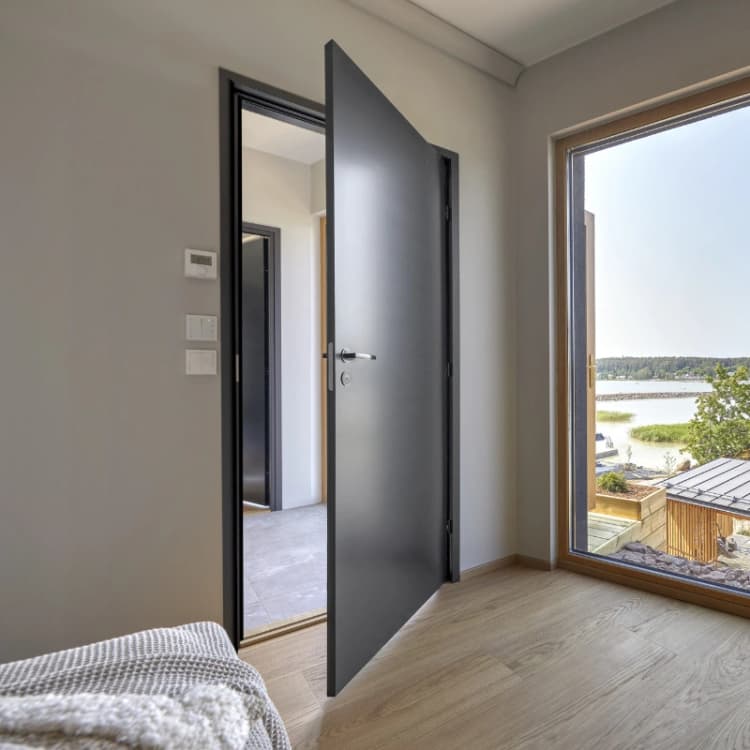

BLACK | ELD21 INTERIOR DOOR

Trendy black massive door for all spaces (ELD21)

0,00

Loading...
Loading...

Total Price:

0,00

Purpose
Pivot interior doors complement the Liune range. Now you can have perfectly matching doors for all interiors, as the pivot hinge door can be installed in doorways where a sliding Liune door cannot be fitted. Liune Door BLACK | ELD21 is a popular smooth black pivot interior door that suits every taste.

Structure
The door is made of solid MDF material, a medium-density fiberboard with unique physical properties.

Door Size
7x21–10x21 or 8x23–10x23

Sound Insulation
Rw 33 dB with a threshold.

Door Surface
The standard color is painted black (NCS S9000-N) with a gloss level of 25. The door's shade can be customized to match the desired tone for the project.

Handle
Choose a suitably colored handle from the accessories menu.

Cover Plate
If you do not want a lock, choose a suitably colored cover plate from the accessories menu.

Lock
If you want a bathroom lock, select a suitably colored lock from the accessories menu.

Lock Case
The standard lock case is ABLOY 2014, with an optional magnetic lock case 2045, which can be ordered here.

Handedness
The doors are symmetrical in appearance and can be installed for the desired handedness.

Frame
The frame depth is 92 mm. The frames are painted pine and come with pre-installed seals that enable quiet door closure. The frames also include three pre-installed hinges that provide excellent support and ensure long service life. Color options are white and black—order your preferred color from the accessories menu.

Hinges
The door is pre-equipped with three hinges to ensure sturdy attachment.

Threshold
Liune doors do not have thresholds, allowing for unobstructed passage. If desired, a threshold can be installed afterward.

Sealing
The door delivery includes a gray sealing strip to soften the sound when the door closes. Liune's pivoting interior doors offer good sound insulation because the door is made of solid wood.

Warranty
Liune Door pivot interior doors come with a two (2) year warranty. The warranty covers the functionality of the fittings and the durability of the door panel paint. The warranty does not cover products that have been structurally modified or installed in damp areas or spaces with significant temperature differences on either side of the door. Excessive moisture may cause the door panel to warp and the paint to crack.

Delivery Contents

  • Door (handle and fittings not attached)
  • Selected frames for the doorway (custom-measured), with hinges pre-installed
  • Screws for the frames and frame plugs matching the frame color

Have a great modeling experience with Liune

The GDL object library is a comprehensive and easy to use. A tool for designers and projects in the ArchiCAD environment. Using the web material of product information requires AcrobatReader.

Opening and processing CAD images requires  a separate CAD program.  If you use the ArchiCAD program, you can download the Liune Door object.


LIUNE CAD -drawings DWG

Autodesk AutoCAD.

Liune dynamic blocks library 2022.dwg (13.5MB)

User's guide Liune AutoCAD dynamic blocks.pdf




LIUNE DOOR PDF -library

LIUNE DOOR high door element 66mm and 95mm
LIUNE DOOR sauna frame 95mm 120mm 565 KB
LIUNE DOOR one leaf and double door frame 120mm 592 KB
LIUNE DOOR one leaf and double door frame 66mm 1 MB

LIUNE DOOR one leaf and double door frame 95mm 2 MB
Liune renovation elements 3 MB

Liune renovation elements without opposite frame 3 MB


Liune ArchiCAD-object 1/2023

LIUNE GDL library 2023.lcf

User guide for GDL Liune library.pdf


LIUNE VXZ -files (Vertex)

Liune elements 66mm 4 MB

Liune elements 95mm 4 MB

Files are provided as it is and company holds no responsibility for the possible errors in programming, files or measurements direct or indirect. Validy of the information should be always checked.


LIUNE Revit RFA -files, Autodesk Revit ver. 2016

Liune D1 massive door 2 MBLiune D2 laminate door 2 MB
Liune D3 smooth white door 2 MB
Liune D4 white milled mirror door 2 MB
Liune D5 moisture resistant door 2 MB
Liune D6 oak veneer door 2 MB
Liune D7 light opening door 2 MB
Liune D8 panel door 2 MB
Liune D9 glass door opal clear dark grey 2 MB
Liune D10 mirror door 2 MB
Liune D11 sauna glass sauna wood door 2 MB
Liune D13 veneer door 2 MB
Liune D14 print glass 2 MB
Liune D15 classic sliding door by liune 916 KB
Liune D16 design door 2 MB


Revit user guide

Liune REVIT USER GUIDE 2 MB


Door textures for Revit

Preview:

Texture: Birchupload/kuvat/Nut_200.jpgupload/kuvat/OakVeneer_200.jpgupload/kuvat/Pine_200.jpgupload/kuvat/PrintGlass_200.jpgupload/kuvat/PrintGlassMirrored_200.jpgupload/kuvat/SaunaWood_200.jpg

Load and save the textures from link below. You will need the pictures in Revit to replace the white door texture.
Liune door textures 2,59 MB


Liune Door BIM object for Autodesk Revit rfa 2012

Liune D1 massive door 2 MB
Liune D2 laminate door 2 MB
Liune D3 smooth white door 2 MB
Liune D4 white milled mirror door 3 MB
Liune D5 moisture resistant door 2 MB
Liune D6 oak veneer door 2 MB
Liune D7 light opening door 2 MB
Liune D8 panel door 2 MB
Liune D9 glass door opal clear dark grey 2 MB
Liune D10 mirror door 2 MB
Liune D11 sauna glass sauna wood door 2 MB
Liune D13 veneer door 2 MB
Liune D14 print glass 2 MB
Liune D15 classic sliding door by liune 824 KB
Liune D16 design door 2 MB

10 Year Warranty for element
